Description:

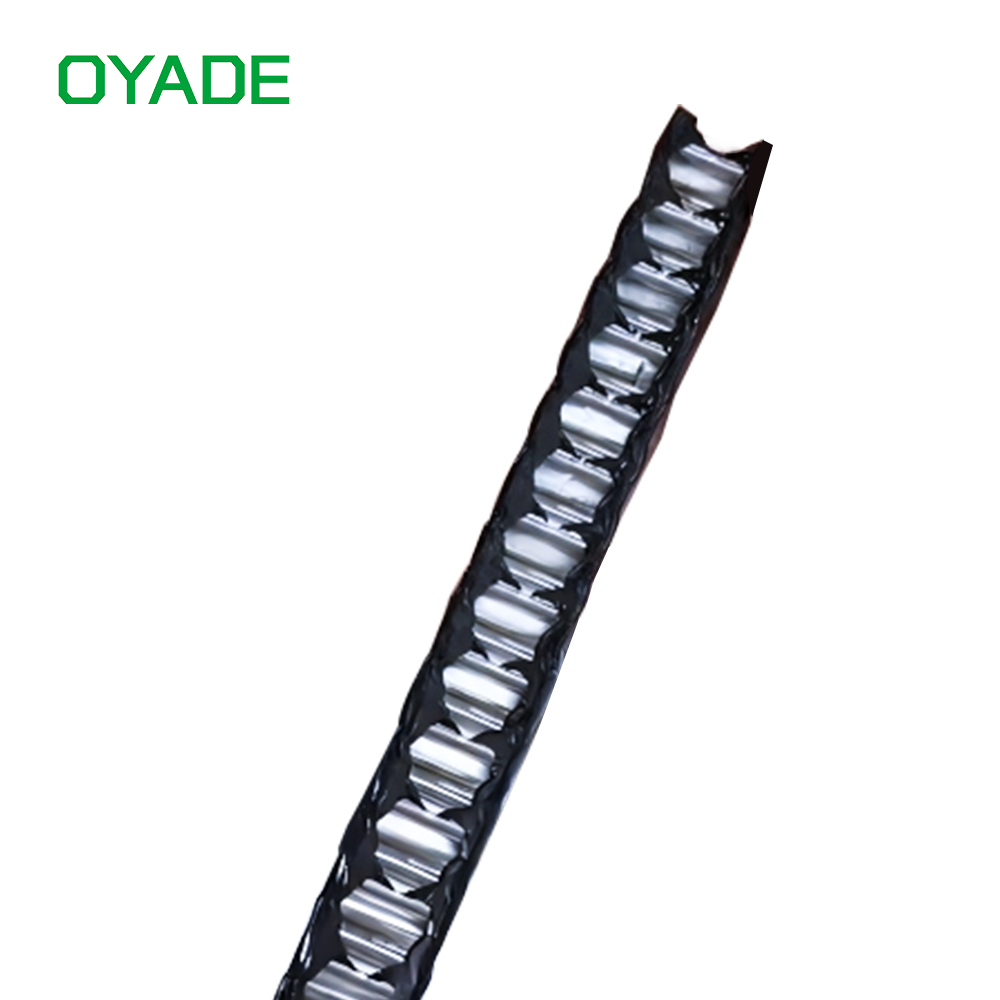

The insulating glass swiggle spacer is a new type of warm edge spacer system. It is pre-installed with butyl sealant, 3A molecular sieve, wavy aluminum belt, heat insulation material, etc. It is suitable for the mass production of double glazing and triple insulating glass, replacing the traditional insulating glass production process and greatly improving production efficiency.

Application:

Used for manufacturing various types of insulating glass, including irregularly shaped IGUs.

Features:

1. No secondary sealant required

2. Excellent sealing performance

3. No condensation at -40°C

4. Outstanding UV resistance

5. Excellent argon retention performance

6. Bendable—ideal for special-shaped IGUs

Instructions:

Use the machine to apply the swiggle spacer from approximately 6.5-7.9mm from the edge of the insulating glass. Ensure the swiggle spacer is parallel to the edge of the insulating glass and at a 90-degree angle. Once the swiggle spacer is fully applied, assemble the glass panes directly.
